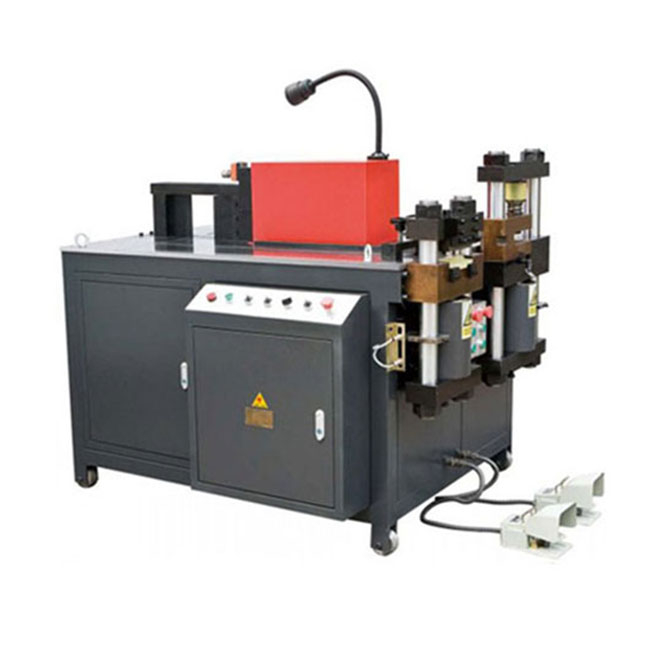

Main Features
• The cutting station adopts a double-column cutting structure, delivering smooth cutting edges with no leftover scraps.
• The bending station uses an enclosed bending structure, which is sturdy and durable. After bending, the angles of workpieces are consistent from top to bottom. By replacing the die, embossing can be realized at this station. The single embossing area is 80*160mm with flat and uniform end faces.
• The punching station adopts a single-arm integrated structure, which improves the concentricity of dies, extends die service life and reduces die change time.
• Any processing unit can be upgraded to a numerical control type based on the main machine to improve operating efficiency and processing accuracy.
• The hydraulic oil tank is welded with 3mm thick steel plate and undergoes phosphating treatment, which effectively protects the hydraulic system and components from contamination and corrosion.
• The hydraulic hoses adopt national standard Type A connection, featuring long service life and easy maintenance.
• The machine is fitted with casters for convenient movement.
Technical Parameters
Nominal Pressure | 300KN |
Maximum processing size | 12*120mm |
Punching Processing Range | ⌀4.3-25mm |
Maximum upright bending width | 120mm |
Worktable Size | 1500mm*1200mm |
Device dimensions | 1750mm*1350mm*1500mm |
Equipment weight | 1390kg |
