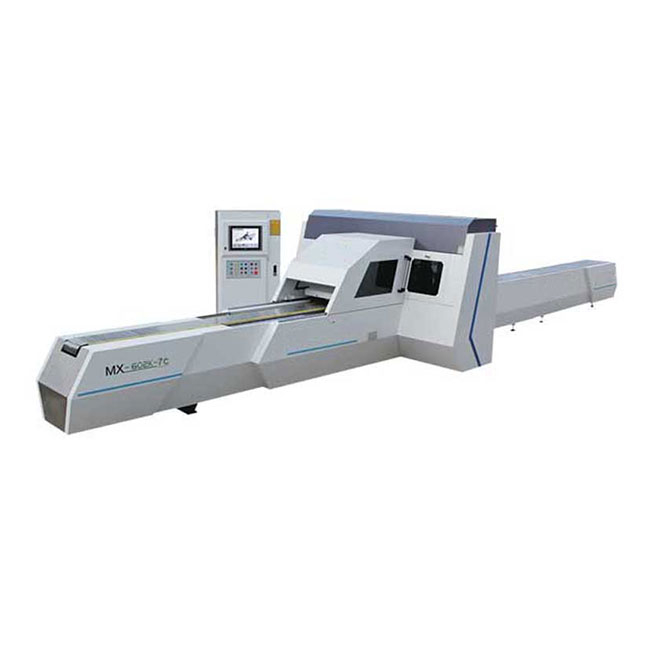

Manual intervention is not needed during the processing of the bus bar,which has the advantages of high processing speed,high precision and the like,and is widely applied to the industries of high and low voltage complete sets,switch cabinets,box-type transformer substations and the like.
Main Features
1. Feeding system:Dual-Power Synchronized Clamping
2. High-Speed Mold Positioning (Y-Axis)
3. High-Frequency Punching System (Z-Axis)
4. Patented "Zero-Waste"Mold Library
5. Smart Dual-Pressure Hydraulic System
6. Advanced Electrical Control System:Powered by Germany's premium BECKHOFF programmable controller.
7. Proprietary LJCAM Industrial Software
Modern Industrial Aesthetic
Technical Parameters
Name | Unit | Parameters |
Nominal Force | Punching unit | kN | 600 |
Shearing unit | kN | 600 |
Embossing unit | kN | 600 |
Number of mold positions | Punching unit | Piece | 7 | 8 |
Shearing unit | Piece | 1 | 1 |
Embossing unit | Piece | 1 | 0 |
Max.Stroke Frequency | HPM | 120-150bpm (20mm stroke) |
Number of control axes | AXIS | 6 |
Hole spacing control accuracy | mm/m | ±0 .20 |
Maximum punching diameter | mm | Ø4 .3-35 (circular hole) |
Maximum cross-sectional area | mm2 | 200×50 |
Maximum positioning speed of X-axis | m/min | 75 |
Maximum effective stroke of X-axis | mm | 2000 |
X-axis accuracy error | mm | 0.20/500 (not accumulated) |
Maximum positioning speed of Y-axis | m/min | 40 |
Maximum effective stroke of Y-axis | mm | 960 |
Y-axis accuracy error | mm | 0.20/500 (not accumulated) |
Maximum stroke of Z-axis | mm | 310 |
Stroke of punching cylinder | mm | 45 |
Maximum allowable size | mm | 6000×200×15 (L×W×D) |
Area of main station: | mm | 10500×2900 (L×W) |
Total power of power supply | kW | 25 |
Selection of main accessories
Main motor | ABB |
Hydraulic pump | Marzocchi, Italy |
solenoid valve | Rexroth Germany |
guide rail | HIWIN/TBI/PMI |
servo system | Estun / Rexroth |
Industrial computer | Beijing Qiyang |
