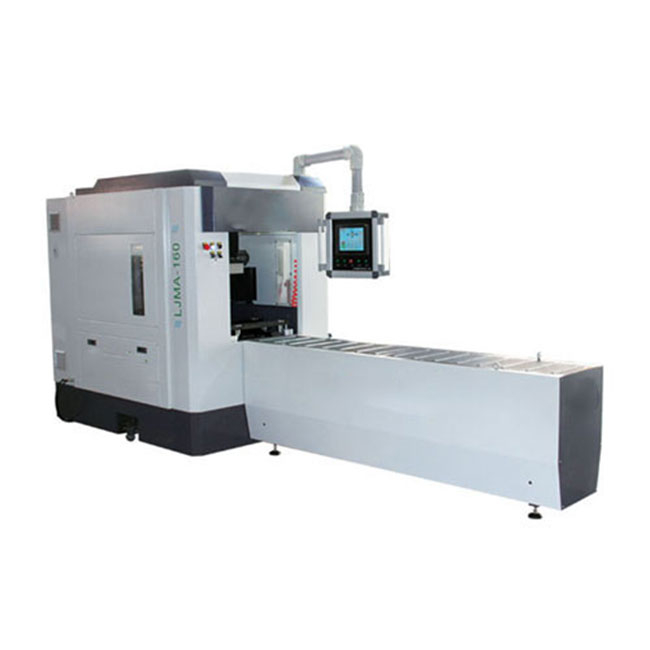

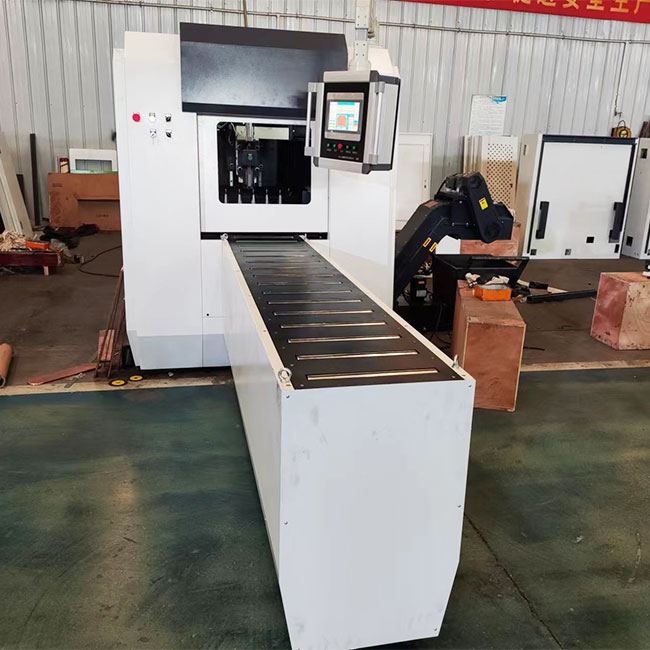

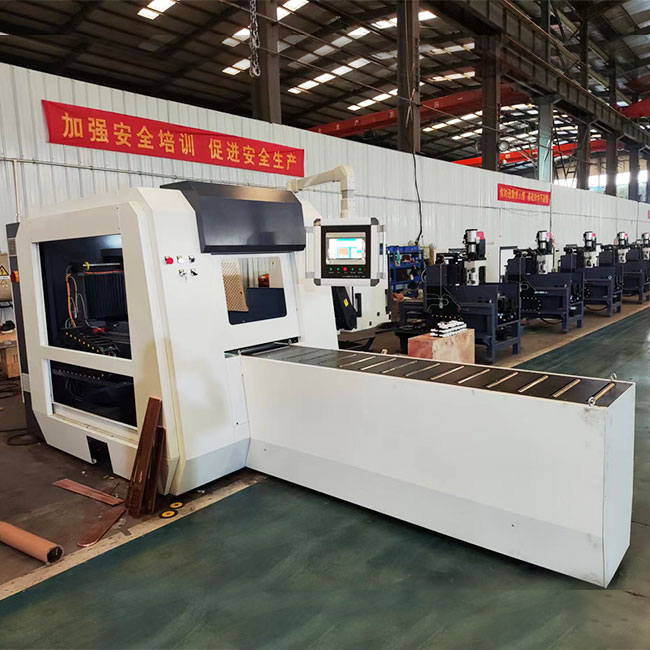

• It is mainly used for chamfer milling processing of busbars with a thickness of 4–16 mm, width of 25–160 mm and length of 110–6000 mm.

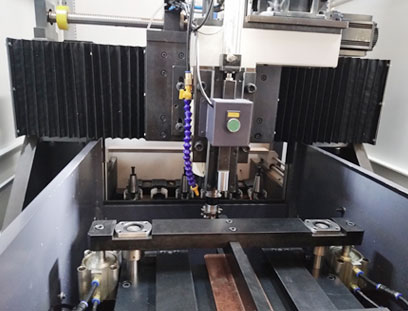

• It adopts a gantry mechanical structure featuring simple design, stable operation and good structural rigidity.

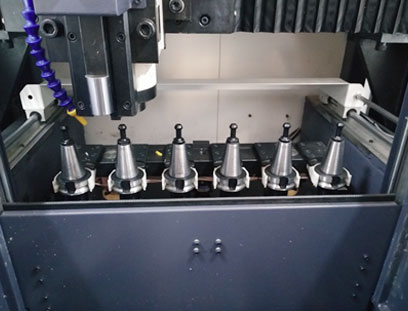

• Equipped with a 6-station inline tool magazine, it can automatically change tools according to the width of the busbar.
• It has a function of automatically accumulating working hours, which cannot be reset. In addition, it supports production statistics function that can be reset.
• It uses internationally standard BT40 tool holders, enabling easy tool change, high rigidity and high precision.

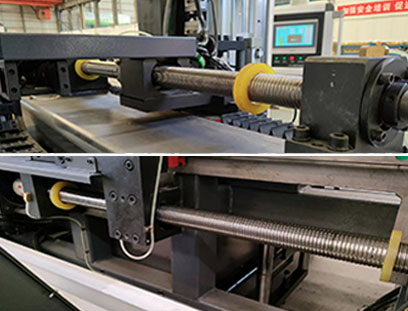

• It adopts a 2-axis numerical control system, which is easy to operate and convenient to maintain.
• It supports simulated machining operation and manual on-line programming.
Parameter Name | Unit | Reference value | |
Cutting part | Spindle speed | R/min | 6000 |
Main motor power | Kw | 3.7 | |
Spindle shank model | BT40 | ||
work schedule | Y | mm | 500 |
X | mm | 525 | |
Process Range | Workpiece thickness | mm | 4-16 |
Workpiece width | mm | 25-160 | |
Workpiece length | mm | 110-6000 | |
Pneumatic system | System operating pressure | Mpa | 0.4-0.6 |
Overall Machine Dimensions | mm | 2000*1396*2300(length*width*height) | |
Total Weight | KG | 2100 |
 Gantry mechanical structure Simple design, Smooth operation, Good structural rigidity |  6-station linear tool magazine With automatic tool change, Tool holder; Simple tool change, good rigidity and high precision International standard BT40 tool holder |  Two-axis control system Easy to operate with convenient maintenance and reliable performance |
