Driven by servo motors and controlled by a CNC unit, it is equipped with self-developed CAD/CMD software system. The machine boasts an industry-leading level of automation, making it an ideal processing equipment for industries such as high and low voltage complete sets, box-type substations, and transformers. Adopting a "closed bending" structure, it has a simple structure and reasonable stress distribution, with greatly improved mechanical strength compared to open bending.

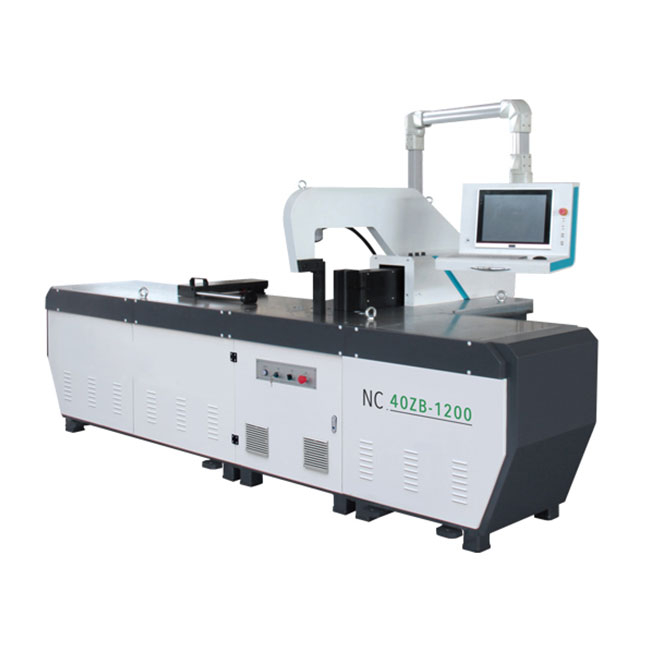

Model | NC.40ZB-1200 | NC.40ZB-2000 | |
Nominal Pressure | 400KN | 400KN | |
Material stop length | 1200MM | 2000MM | |
Max processing size for horizontal bending | 15X160MM | 15X200MM | |
Max Machining Size for Edge Bending | 12X120MM | 12X120MM | |
Parameter Comparison | Spindle travel | 200MM | 200MM |
Main motor power | 7.5kw | 7.5kw | |
Stopping accuracy | ±0.15 | ±0.15 | |
Bending accuracy | ±0.3 | ±0.3 | |
Device dimensions | 3500X1450X1850 | 4300X1450X1850 | |
Equipment weight | 3100kg | 3300kg | |

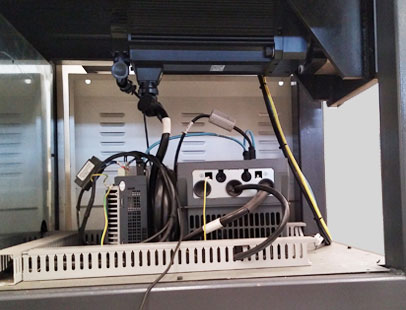

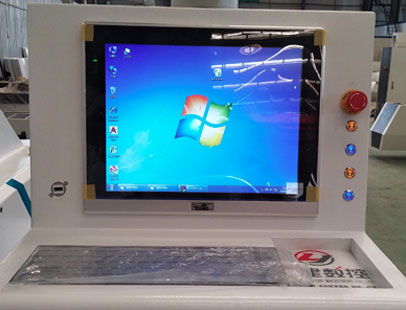

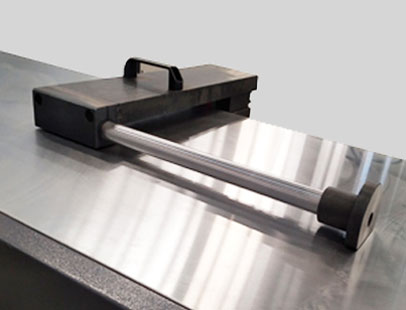

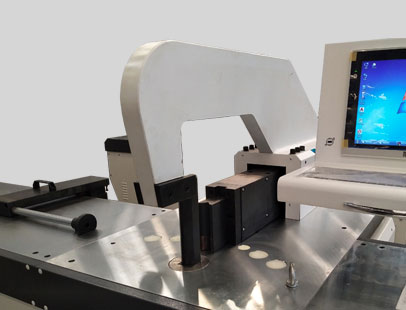

 Closed bending structure Simple structure, reasonable stress and high mechanical strength |  Modular design Stable operation |  Servo motors Feature good stability, smooth transmission and high positioning accuracy. |  Touch screen Human-machine interface, bending program; Clear interface and easy operation. |
